Mitophagy Detection Tool

Mitophagy Detection Tool

The study of mitophagy is currently a hot research topic in biology. The mitochondria-specific localization fluorescent probe (HBAD-Mito-dsred) developed independently by HANBIO can accurately localize and label mitochondria, which can be used in combination with HANBIO's exclusive dual-fluorescent LC3 cellular autophagy adenovirus, it can accurately track the dynamic process of mitophagy in real time. Mitophagy is the process by which cells selectively remove mitochondria through the mechanism of autophagy. Selective removal of damaged or functionally incomplete mitochondria is critical for the functional integrity of the entire mitochondrial network and for cell survival. Abnormalities in mitophagy are closely related to many diseases, so it is biologically important to study the specific molecular mechanisms as well as the physiological significance of mitophagy.


Hanbio Mitophagy Detection Tool Products

Tool

Function introduction

Provide products

mKeima

Study on mitophagy phenotype

LV/Ad/AAV

Cox8-EGFP-mCherry

mito-dsred

EGFP-LC3

Parkin-EGFP

Study on mitophagy pathway

Parkin-EGFP

Nix-EGFP

FUNDC1-EGFP

*Note: LV: Lentivirus, Ad: Adenovirus, AAV: Adeno-associated virus.

Signaling Pathway of Mitophagy


1. Pink/Parkin pathway

2. Bnip3/Nix pathway

3. FUNDC1 pathway


Mitophagy Detection Kit


Mitophagy pathway: Pink1/Parkin OR Bnip3/Nix

Abnormalities in mitophagy are closely related to many diseases, so it is biologically important to study the specific molecular mechanisms of mitophagy as well as its physiological significance. HANBIO has an experienced mitophagy research team to provide you with a research program and tools for mitophagy.

Mitophagy Research Tools and Research Approaches

HANBIO mitophagy phenotyping research tool

1)Ad-GFP-LC3 adenovirus system, which can efficiently infect target cells to express GFP-LC3, and the overall level of autophagy can be observed in real time under fluorescence microscope in the infected cells;


2)Ad-Dsred-Mito adenovirus system, a mitochondria-specific localization fluorescent probe (HBAD-Mito-dsred) developed independently by HANBIO can accurately localize and label mitochondria, which can be used in combination with HANBIO's exclusive dual-fluorescent LC3 cellular autophagy adenovirus, it can accurately track the dynamic process of mitophagy in real time;

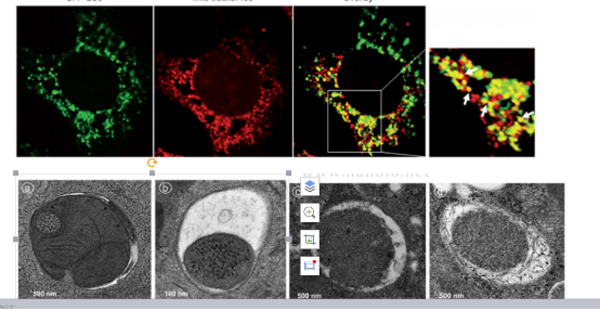

Usage: Ad-GFP-LC3 + HBAD-Mito-dsred co-infected target cells, confocal detection of dual fluorescence co-localization, and the presence of mitophagy if co-localized!


Mitophagy Detection

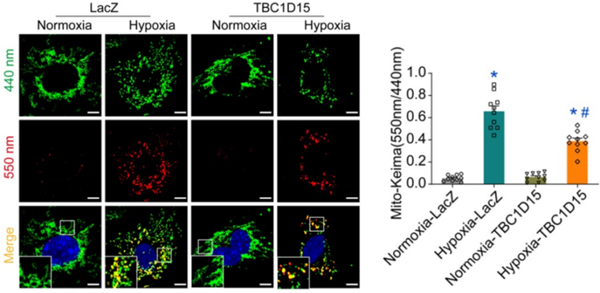

3)mKeima virus tools: The Keima protein expressed by mKeima is localized in the mitochondrial matrix, and when the mitochondrial autophagosome fuses with acidic lysosomes, the fluorescence signal of Keima protein shifts from green to red, and the conversion of the fluorescence signal can quantitatively reflect the occurrence and development of mitophagy.


Mitophagy Detection Kit

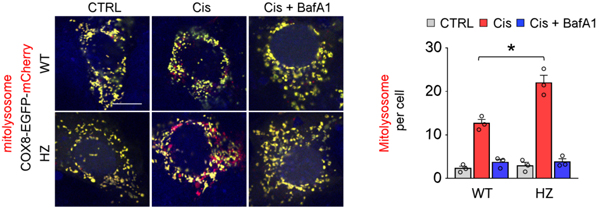

4)Cox8-EGFP-mCherry virus tools: The leading peptide sequence of the mitochondrial inner membrane protein Cox8 was expressed in fusion with the EGFP-mCherry fluorescent tandem sequence, and in the cytoplasm, both red fluorescent proteins and green fluorescent proteins were simultaneously expressed, appears as yellow. If mitophagy occurs, the green fluorescent protein is quenched in autophagic lysosomes due to the acidic environment of lysosomes, leaving only the red fluorescent signal. The level of mitophagy can therefore be measured by counting the number of red fluorescent spots.


Mitophagy Detection


HANBIO mitophagy pathway research tool

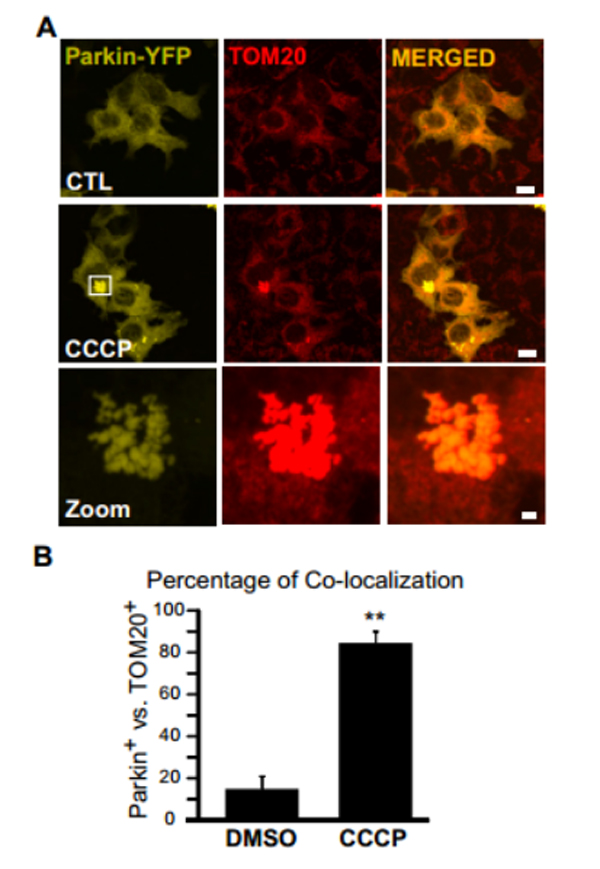

1)Ad-Parkin-EGFP

2)Ad-Bnip3-EGFP+Ad-Nix-EGFP

3)Ad-FUNDC1-EGFP


Usage: With the HANBIO HBAD-Mito-dsred to localize mitochondria co-infecting target cells, confocal detection of co-localization, and identification of mitochondrial translocation of relevant signaling molecules!

In addition, we also have adenovirus spot Beclin1, Atg7 and other common genes involved in autophagy to meet the needs of your experiment.


Hanbio Mitophagy Research Tool

Mitophagy Detection Tool User Citations

  • Fusobacterium nucleatum Promotes Chemoresistance to Colorectal Cancer by Modulating Autophagy

    (journal: CELL, IF=41.582, Renji Hospital Affiliated to Shanghai Jiaotong University School of Medicine)

  • atg7-Based Autophagy Activation Reverses Doxorubicin-Induced Cardiotoxicity

    (journal: Circulation Research, IF=17.367, Beijing University of Chinese Medicine)

  • PIWIL2 interacting with IKK to regulate autophagy and apoptosis in esophageal squamous cell carcinoma

    (journal: Cell death and differentiation, IF=15.828, West China Hospital of Sichuan University)

  • USP11 regulates autophagy-dependent ferroptosis after spinal cord ischemia-reperfusion injury by deubiquitinating Beclin 1

    (journal: Cell Death & Differentiation, IF=15.828, The First Affiliated Hospital with Nanjing Medical University)

  • Nanoprodrug ratiometrically integrating autophagy inhibitor and genotoxic agent for treatment of triple-negative breast cancer

    (journal: Biomaterials, IF=12.479, The Second Affiliated Hospital Zhejiang University School of Medicine)
